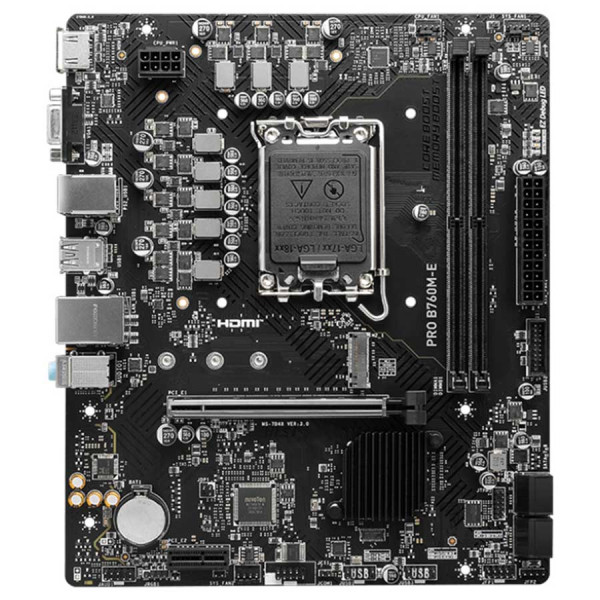

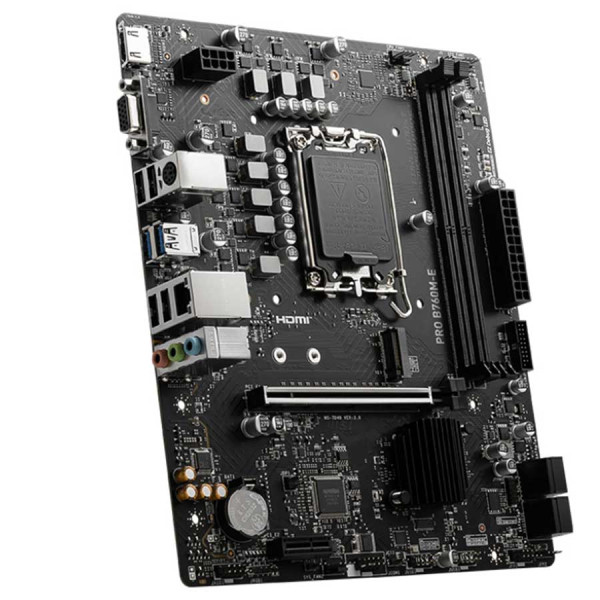

MSI Pro B760M-E Gaming Motherboard - DDR 5 - Lighting GEN 4 - LGA 1700
CPU : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® LGA 1700
Memory : 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6400+(OC) / ... / 5000 / 4800
Supports Intel® XMP 3.0 OC
Onboard Graphics : 1x HDMI™
- Supports HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
-1x VGA
Storage : 1x M.2
- M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
-SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

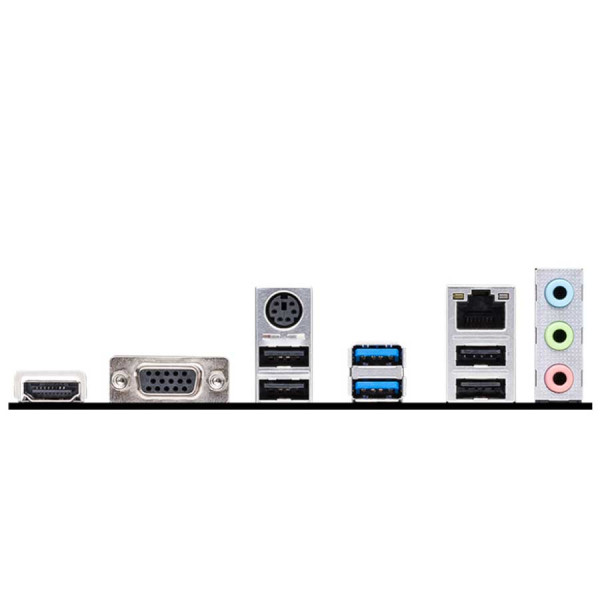

USB : 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
Audio : Realtek® ALC897 Codec
7.1-Channel High Definition Audio
PCB Info : mATX 200mmx236.16mm
Tags:
911-7D48-039
