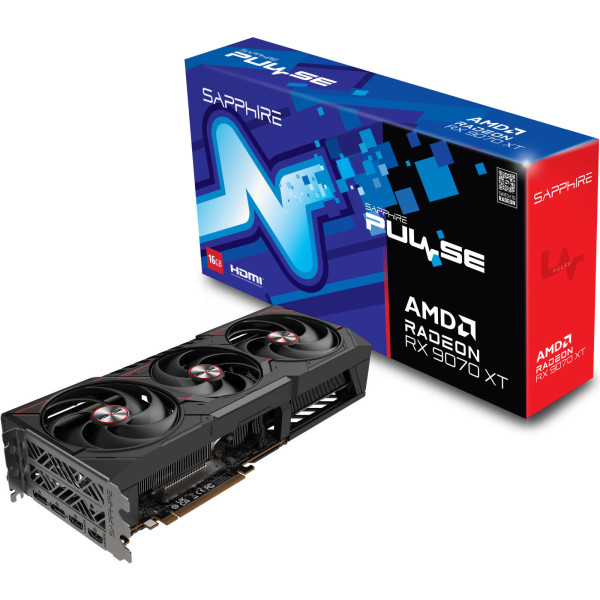

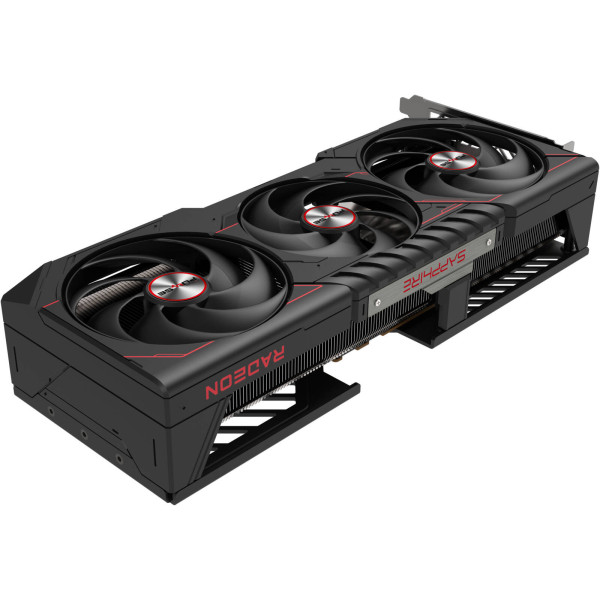

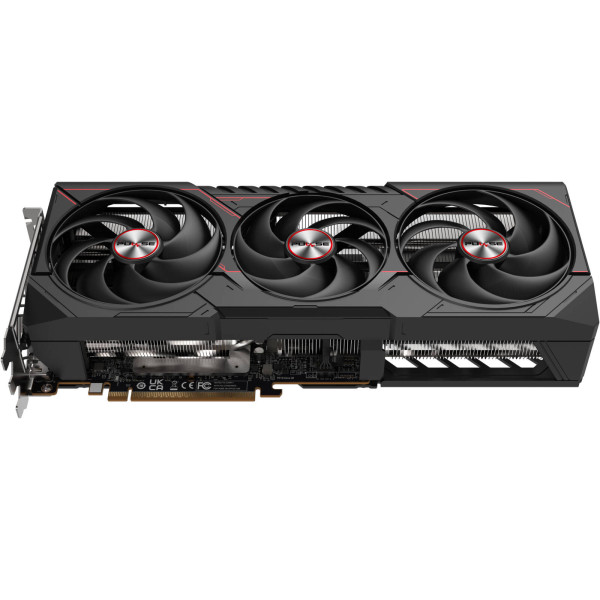

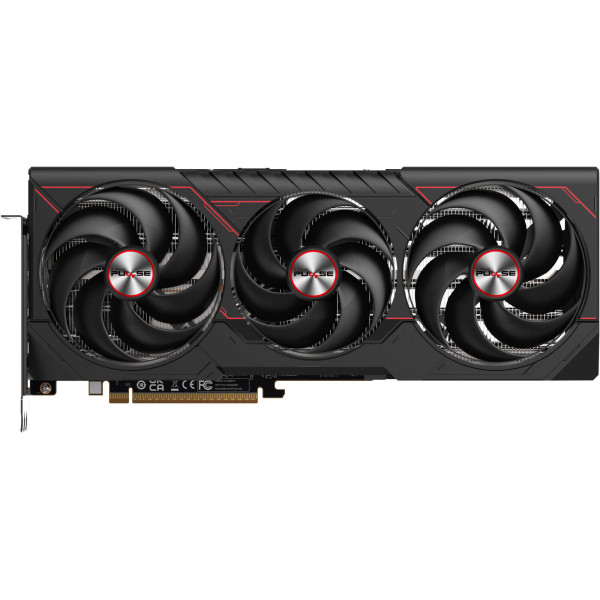

SAPPHIRE PULSE AMD Radeon RX 9070 XT 16GB - GDDR6 3xFAN

GPU : AMD Radeon™ RX 9070 XT Graphics Card, AMD RDNA™ 4 Architecture

Engine Clock : Boost Clock: Up to 2970 MHz, Game Clock: Up to 2400 MHz

Stream Processors : 4096

Compute Units : 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache : 64MB

Ray Accelerators : 64

AI Accelerator : 128

Memory Size / Bus : 16GB / 256-bit GDDR6

Memory Clock : 20 Gbps Effective

Displays : Maximum 4 Displays

Resolution : HDMI®: 7680×4320, DisplayPort™ 2.1a: 7680×4320

Interface : PCI-Express 5.0 x16

Output : 2x HDMI®, 2x DisplayPort™ 2.1a

BIOS Support : UEFI

Game Index : 4K

Sapphire Features : Honeywell PTM7950 TIM, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, Tri-X Cooling Technology, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, Two-Ball Bearing Fans, 14-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control, TriXX Supported, TriXX Boost

Accessories Bundled : L-Shape Support Bracket

AMD Features : AMD RDNA™ 4 Architecture, 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators), AMD HYPR-RX with AFMF 2, AMD FidelityFX™ Super Resolution 4 with AI Upscaling, DisplayPort™ 2.1a, AMD Radiance Display™ Engine, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag 2, AV1 Encode/Decode, AMD FidelityFX™ technologies, Microsoft® DirectX® 12 Ultimate, AMD Noise Suppression, AMD Freesync™, 16GB GDDR6 on 256-bit Memory Bus, AMD Smart Technologies, AMD Adrenalin Edition™ Software

Cooler Type : Tri-X Cooling, AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Two-Ball Bearing

Form Factor : 3 Slot, ATX

Dimensions : 320 (L) x 120.25 (W) x 61.6 (H) mm

Power Consumption : 304W Typical Board Power

OS Support : Linux®, Windows® 10, Windows® 11 (64-bit required)

System Requirements : Minimum 750W Power Supply, 2 x 8-pin Power Connector, PCI Express® x16 slot, Minimum 8GB system memory (16GB recommended)
