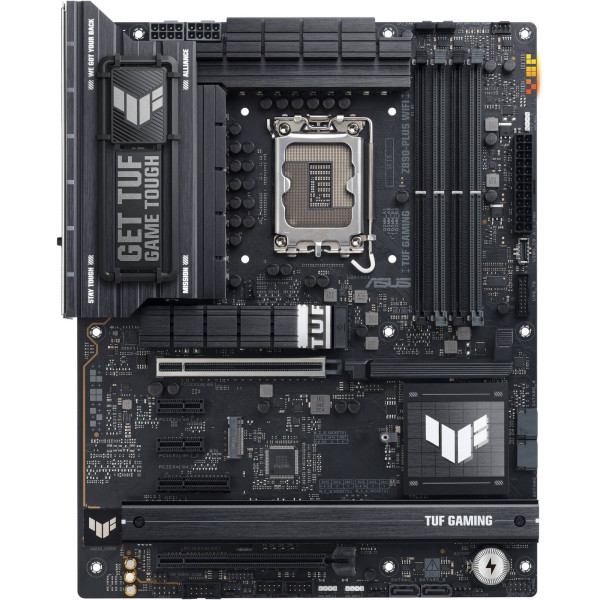

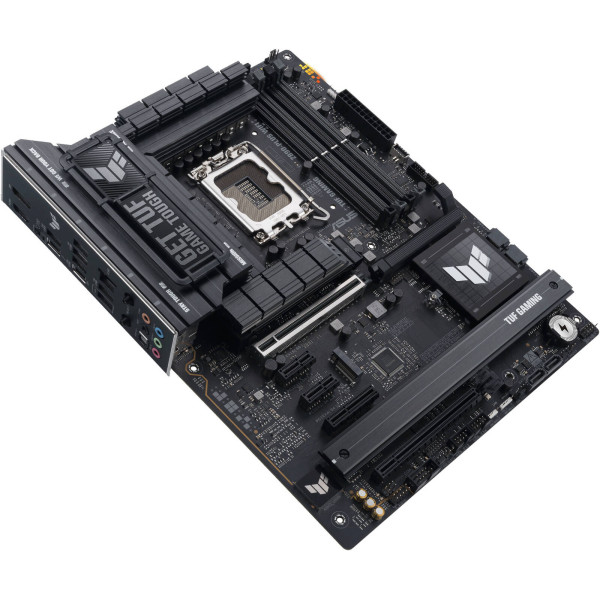

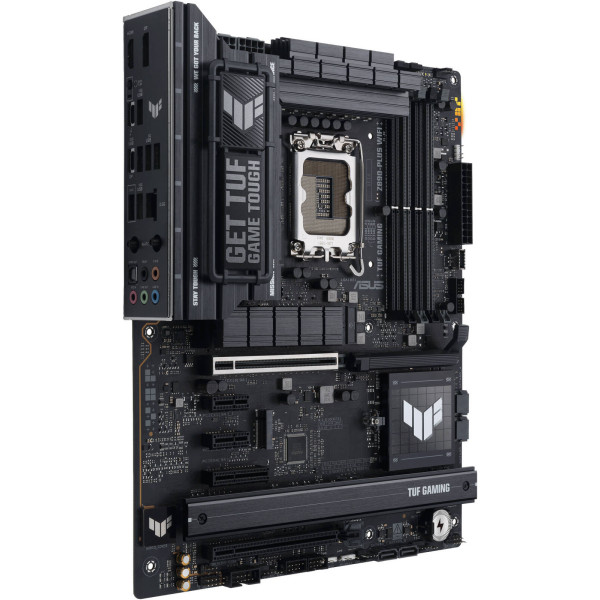

اسوس تي يو اف Z890 بلس وايفاي 7 - DDR5 مذبورد LGA 1851
CPU : Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Intel® Turbo Boost Max Technology 3.0 support depends on CPU types.
Chipset : Intel® Z890 Chipset
Memory : 4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered
Dual channel memory architecture
Supports : Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMPIII)
Supported memory types and configurations vary based on CPU.
Graphics : 1 x DisplayPort (max. 4K@60Hz)
1 x HDMI™ port (4K@60Hz)
1 x Intel® Thunderbolt™ 4 port (supports DisplayPort and Thunderbolt™ video outputs)
1 x USB 20Gbps port (USB Type-C® supports DisplayPort video output)
Graphics specifications vary by CPU types.
Expansion Slots : 1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
Storage Total: 4 x M.2 slots, 4 x SATA 6Gb/s ports
M.2_1 (Key M, PCIe 5.0 x4 mode)
M.2_2 (Key M, PCIe 4.0 x4 mode)
M.2_3 (Key M, PCIe 4.0 x4 mode)
M.2_4 (Key M, PCIe 4.0 x4 & SATA modes)
Supports RAID 0/1/5/10.
Ethernet : 1 x Intel® 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth : Wi-Fi 7 (2x2 Wi-Fi 7, 802.11be)
Supports 2.4/5/6GHz bands, up to 2.9Gbps
Bluetooth® v5.4
Wi-Fi features may vary by OS.
USB : Rear (Total 8 ports):
1 x Thunderbolt™ 4 (USB Type-C®)
1 x USB 20Gbps (USB Type-C®)
3 x USB 10Gbps (Type-A)
3 x USB 5Gbps (Type-A)
Front (Total 7 ports):
1 x USB 20Gbps connector (USB Type-C®)
1 x USB 5Gbps header
2 x USB 2.0 headers
USB Type-C® power delivery max. 5V/3A
Audio : Realtek ALC1220P 7.1 Surround Sound CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High-quality 120 dB SNR playback output, 113 dB SNR recording input
Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers

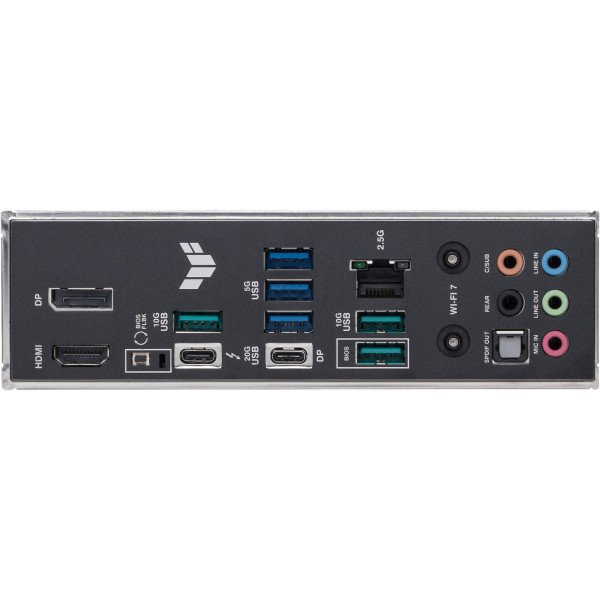

Back Panel I/O Ports : 1 x Thunderbolt™ 4 USB Type-C®
1 x USB 20Gbps (USB Type-C® with DP Alt mode)
3 x USB 10Gbps (Type-A)
3 x USB 5Gbps (Type-A)
1 x DisplayPort
1 x HDMI™
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Internal I/O Connectors Fan and Cooling:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related:
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
Storage Related:
4 x M.2 slots, 4 x SATA 6Gb/s ports
Special Features : ASUS TUF PROTECTION: DIGI+ VRM, ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot
ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-LED indicators
ASUS Thermal Solution: M.2 heatsink, VRM heatsink design
ASUS EZ DIY: BIOS FlashBack™ button, CPU Socket lever protector
Software Features : ASUS Exclusive Software:
Armoury Crate, Aura Creator, Fan Xpert 4, Power Saving
Others:
ASUS DriverHub, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Adobe Creative Cloud (Free Trial)
BIOS : 256 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Accessories : Cables: 2 x SATA 6Gb/s cables
Miscellaneous: 1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Slide package, 1 x Screw package for M.2 SSD
Documentation: 1 x Quick start guide
