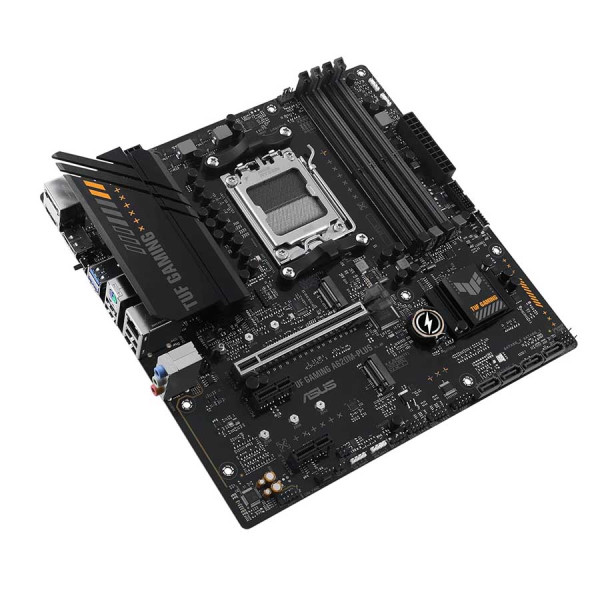

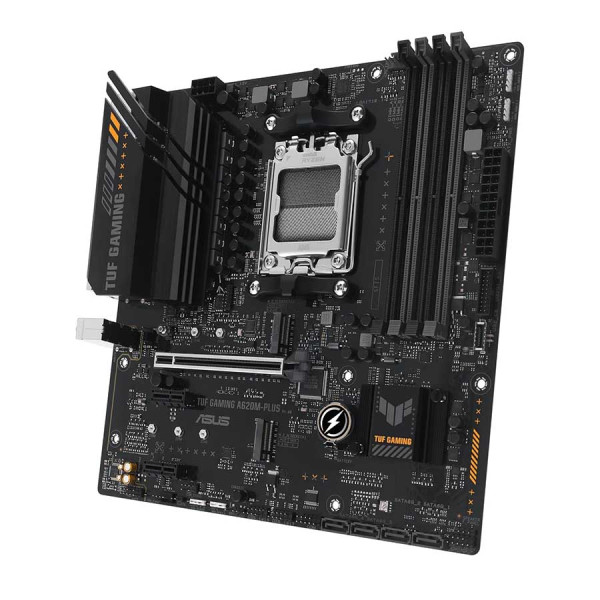

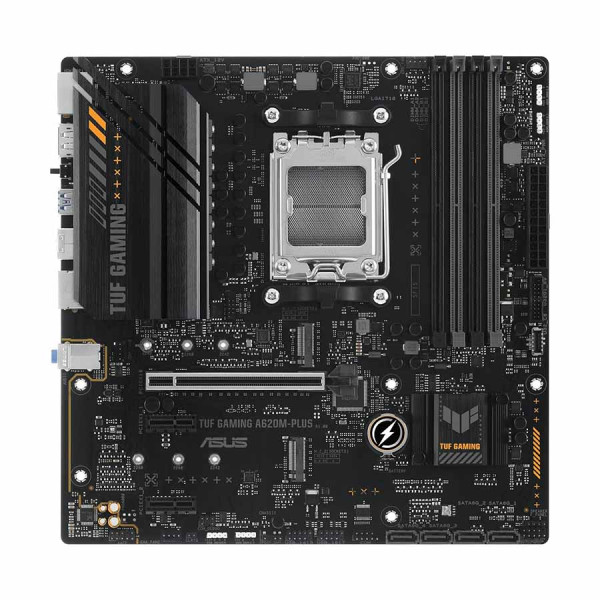

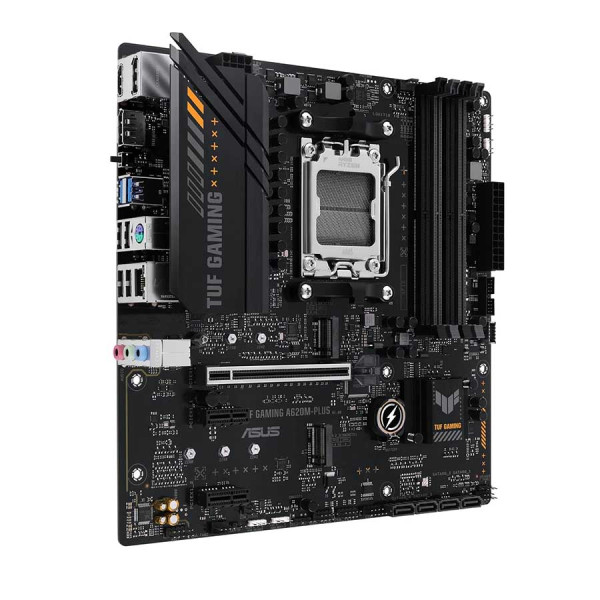

اسوس توف قيـمنغ A620M-PLUS حجم Mico ATX تدعم رامات DDR5 منفذين PCIe 4.0 M.2 - مقبس AM5
90MB1EZ0-M0EAY0
Model: TUF A620M-PLUS
Form Factor: micro-ATX Form Factor (9.6 inch x 9.6 inch)
CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD A620 Chipset
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Memory: 4 x DIMM slots, Max. 192GB DDR5
7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/
5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Graphics:
2 x DisplayPort
1 x HDMI™ port
Expansion Slots:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD A620 Chipset
1 x PCIe 3.0 x1 slot
Storage: 2 x M.2 slots (type 2242/2260/2280 (supports PCIe 4.0 x4 mode) / 4 x SATA 6Gb/s ports
Ethernet: 1 x Realtek 2.5Gb Ethernet / TUF LANGuard
USB:
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

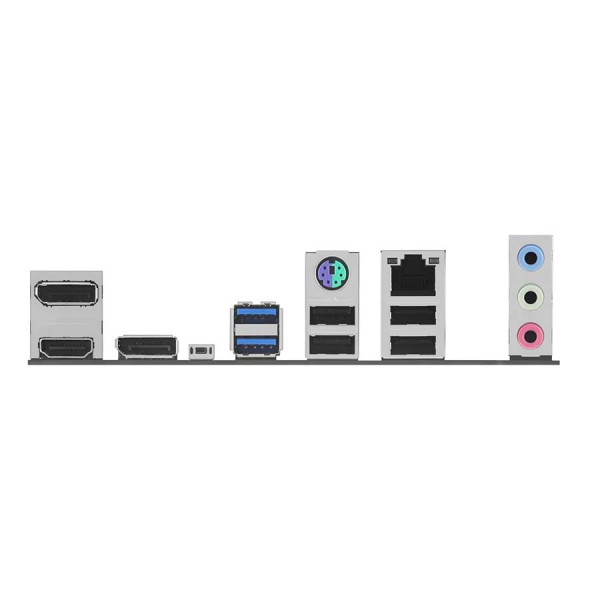

Back Panel I/O Ports:
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
2 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
